C172 Lower Panel
This page is split into three main sections:
Parts Guide
Print Guide
Build Guide
The ultimate printer I can recommend is the Bambu Labs X1 carbon with AMS or P1P if you have deep pockets. ($1200). It's a massive leap forward in 3D printing, with excellent quality and impressive speeds. It's pretty much press print and go as the software and hardware do the calibration before each print.
General Information:
Build Guide
Click on image for more details
STEP:
1
Place B5 against P4. Enure the holes align
Click on image for more details
STEP:
2
Secure the parts with an M4 x 8mm countersunk screw.
Click on image for more details
STEP:
3
Place P3 over P4
Click on image for more details
STEP:
4
Place the B4 mount against the joint
Click on image for more details
STEP:
5
Secure with an M4 x 8mm countersunk screw.
Click on image for more details
STEP:
6
Place the P2 panel over P3.
Click on image for more details
STEP:
7
Place B2 over the joint
Click on image for more details
STEP:
8
Secure with an M4 x 8mm countersunk screw
Click on image for more details
STEP:
9
Place P1 over P2
Click on image for more details
STEP:
10
Place the B2 mount behind and secure the parts with an M4 x 8mm countersunk screw.
Click on image for more details
STEP:
11
Secure the panel P1 to the Mount B1 with Qty 2, M4 x 14mm Dome head screws.
Click on image for more details
STEP:
12
Insert the rotary switch into the backing plate (M1).
Click on image for more details
STEP:
13
Ensure you locate the tang into the orifice.
Click on image for more details
STEP:
14
Secure the rotary switch with the nut that came with the unit.
Click on image for more details
STEP:
15
Insert the M3 barrel onto the end of the rotary switch
Click on image for more details
STEP:
16
Place the case (M2) over the barrel (M3)
Click on image for more details
STEP:
17
Secure the Baseplate (M1) to the Case (M2) with Qty 3, M4 x 8mm screws.
Click on image for more details
STEP:
18
The finished unit can be operated by any small key.
Click on image for more details
STEP:
19
Insert the magneto switch into the RHS Fuse panel (F1) and secure with Qty 2, M4 x 14mm countersunk screws.
Click on image for more details
STEP:
20
Insert the Black Body (C2) into the Silver base (C1)
Click on image for more details
STEP:
21
Place into the CB orifice of the fuse panel
Click on image for more details
STEP:
22
Secure with an M3 washer and an M3 x 6mm Screw. Or simply superglue the parts together.
Click on image for more details
STEP:
23
Print a decal and cut it out on self adhesive paper (not supplied) and stick to the end of the CB Body
Click on image for more details
STEP:
24
Place the cap over the top, This will tidy and edges up and should be a tight press fit. Use superglue if needed.
Click on image for more details
STEP:
25
Repeat this process for all 37 CB's on the LHS
Click on image for more details
STEP:
26
Repeat the CB fitment process for the RHS CB's.
Click on image for more details
STEP:
27
Place the LHS Fuse panel onto the base panel assy
Click on image for more details
STEP:
28
Secure with Qty 2, M4 x 14mm dome head screws.
Click on image for more details
STEP:
29
Place the RHS fuse Panel on the base panel assy.
Click on image for more details
STEP:
30
Secure it with QTY 4, M4 x 14mm dome head screws.
Click on image for more details
STEP:
31
Place the Static air knob (T1) onto the throttle panel (T2)
Click on image for more details
STEP:
32
Secure with an M4 washer and M4 x 8mm screw.
Click on image for more details
STEP:
33

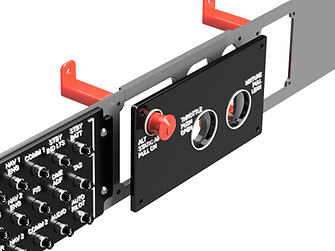

Place the throttle panel onto the base panel assy.
Click on image for more details
STEP:
34

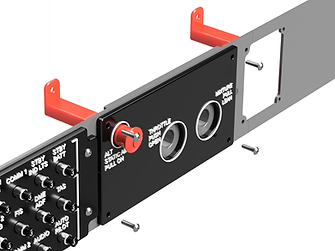

Secure the panel with Qty 4, M4 x 14mm screws.
Click on image for more details
STEP:
35

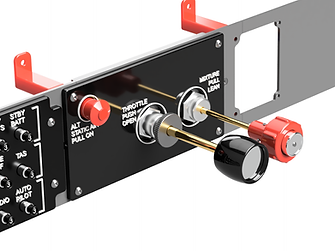

Insert the throttle and Mix knob assemblies into the base panel. See the separate build guides for construction:
Throttle: https://www.737diysim.com/build-guides-1/c172-throttle
Mix Lever: https://www.737diysim.com/build-guides-1/c172-mix-lever
Click on image for more details
STEP:
36
Insert the Flap panel into the base panel
Click on image for more details
STEP:
37
Secure with Qty4, M4 x 14mm screws.
Click on image for more details
STEP:
38
The unit is now finished and ready to be inserted into the MIP. See:
https://www.737diysim.com/build-guides-1/c172-main-panel
