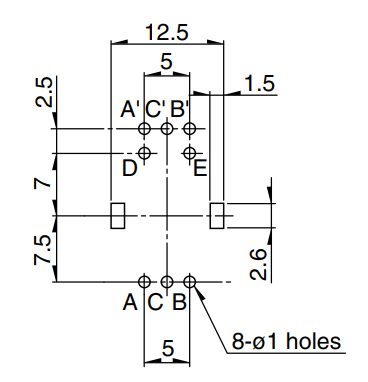

Hi guys, looking for someone that could help me out with the pinouts for the EC11EBB24C03 for G1000NXI project. The diagram Karl have online is for the PROPWASHSIM encoder and I've been looking online but haven't find anything useful for this other encoder. I have figure out the push button and grounds but don't want to damage the encoder by applying voltage to the wrong pin and maybe even damaging the Arduino.
D & E pins are for the push button, Thanks for any help.


Hope these photos help.
No voltage needed - GNDs in the middle of the three pins either side, then each side of GND is the left / right of the dual encoder. For example one side is for the 123. of a COMM1 and the other side is the .775 section.
The other two pins are for the push - one is the GND and the other is the push.
Daisy chain the GNDs so less wires coming out!
What I am reading from that article is that you wire the c pin to ground on your arduino and A and B to the digital pins. No voltage supplied to encoder at all. It seems you only need to determine which of the 3 pins are for which encoder so you can program the sim.
This article might help you puzzle it out, I'll be in the same boat when I start building mine. https://www.bitsanddroids.com/back-to-basics-dual-concentric-rotary-encoders/
