General Information:

STEP:

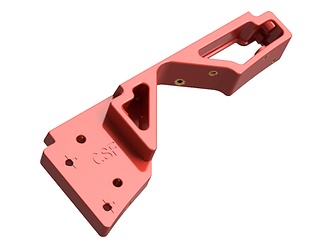

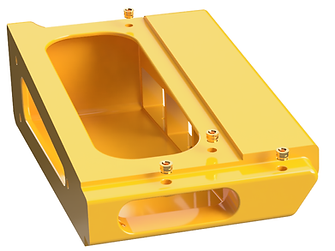

Insert an M4 Brass insert into every hole in the CSR except the two marked with a cross.

STEP:

Turn the unit over and install more M4 brass inserts into the orifices.

STEP:

Insert an M4 Brass insert into every hole in the CSF except the two marked with a cross.

STEP:

Turn the unit over and install more M4 brass inserts into the orifices.

STEP:

Place the CSR and CSF together. Secure the two parts with QTY 2, M4 x 22mm Screws

STEP:

Turn the unit over and secure the two parts with a further QTY 2, M4 x 22mm Screws.

STEP:

Insert QTY 2, M4 brass inserts into the top of LH BASE

STEP:

Secure the centre frame to the LH Base with QTY 2, M4 x 8mm countersunk screws.

STEP:

Insert a furthermore QTY 2, M4 x 8mm Countersunk screws.

STEP:

Turn the unit over and insert QTY 3, M4 x 8mm screws.

STEP:

Insert QTY 4, M4 brass inserts into RH Base

STEP:

Insert Qty 1 brass insert into the top of RH BASE.

STEP:

Place RH Base onto the centre frame and secure with QTY 2, M4 x 8mm countersunk screws.

STEP:

Add QTY 4, M4 x 8mm screws to the back

STEP:

Add QTY 3, M4 x 8mm screws to the underside

STEP:

Insert a single M4 brass insert into MID LH on the top side corner.

STEP:

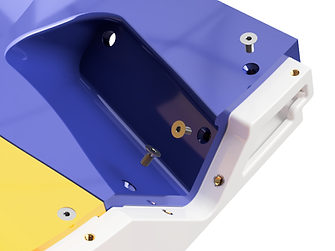

Place the MID LH onto the centre frame and secure with QTY 2, M4 x 8mm screws.

STEP:

Turn the unit over and insert a further QTY 3, M4 x 8/12mm screws.

STEP:

Insert QTY 4, m4 x 15mm screws into LH BASE, to secure the two section together.

STEP:

Use QTY 4, M4 flange nuts to secure the parts.

STEP:

Insert QTY 2, M4 brass inserts into MID RH.

STEP:

Insert QTY 3, M4 brass inserts into MID RH.

STEP:

Place MID RH onto the centre frame and secure with QTY 2, M4 x 8mm countersunk screws.

STEP:

Insert QTY 4, M4 x 15mm screws through BASE Rh into MID RH and secure with QTY4, M4 flange nuts.

STEP:

Turn the unit over and secure MID RH to Centre frame with QTY 3, M4 x 8mm/12mm Screws.

STEP:

Insert QTY 4, M4 brass inserts into TOP RH

STEP:

Turn the unit over, and place a further QTY 2, M4 brass inserts into the orifices.

STEP:

Rotate the unit to the inside edge and install a further QTY2, M4 brass inserts

STEP:

Attach the TOP RH to the assembly with QTY 3, M4 x 15mm Screws.

STEP:

Secure the screws with QTY 3, M4 flanged nuts.

STEP:

Place the TOP LHS unit onto the assembly. Secure it from the MID LHS unit with QTY 3 M4 x 15mm screws. (one is hidden and there are 5 holes in total. Pick 3 that suits your access.

STEP:

Secure those 3 screws with 3 M4, flange nuts.

STEP:

Insert QTY 2, M4 x 8mm countersunk screws into the top of the unit

STEP:

Turn the assembly over and insert QTY 2, M4 x 8mm countersunk screws,

STEP:

Insert QTY3, M4 brass inserts into the fillet

STEP:

Insert QTY 1, M4 brass insert into the fillets, tangent side.

STEP:

Place the fillet onto the glare wing

STEP:

Secure the Fillet with QTY 3, M4 x 12mm screws

STEP:

Insert QTY 2, M4 Brass inserts into GBA2

STEP:

Insert QTY 2, M4 Brass inserts into GBA2

STEP:

Secure the GBA assemblies with QTY 2m M4 x12mm screws

STEP:

Secure the GBA assemblies with QTY 2m M4 x12mm screws

STEP:

Place the GBA assy onto the Glare wing

STEP:

Use QTY 4, M8 x 25mm bolts

STEP:

Secure the parts with QTY 4, M8 Nuts.

STEP:

Install a length of 12v LED strip into the lighting recess. Feed the wires through one of the two holes. I would recommend feeding the wires out of the back of the unit and ensuring the cables are long enough to reach your designated connection point.

STEP:

Construct the Fire warning Korry from the build guide in the link. Feed the wires through the unit and secure the Korry with an M4 x 6mm grub screw.

STEP:

Construct the Master Caution Korry from the build guide in the link. Feed the wires through the unit and secure the Korry with an M4 x 6mm grub screw.

STEP:

Construct the Captains 6 Pack from the build guide using the Link Button. Feed the wires through the unit and secure the Korry with an M4 x 6mm grub screw.

STEP:

Construct the F/O 6 Pack from the build guide using the Link Button. Feed the wires through the unit and secure the Korry with an M4 x 6mm grub screw.

STEP:

Please cut the Glarewing Top Panel to size. If you have a laser cutter or CNC, please jump to step 49 for the DXF file.

STEP:

If you are manually trying to drill all the attachment holes, please click the fusion link so you can print a template and measure the hole distance manually. All holes are 4.3mm in diameter.

STEP:

Please click the link for the DXF file download

STEP:

Don't fit the top cover panel until all work is complete!
