737 Cargo Panel
This page is split into three main sections:
Parts Guide
Print Guide
Build Guide
The ultimate printer I can recommend is the Bambu Labs X1 carbon with AMS or P1P if you have deep pockets. ($1200). It's a massive leap forward in 3D printing, with excellent quality and impressive speeds. It's pretty much press print and go as the software and hardware do the calibration before each print.

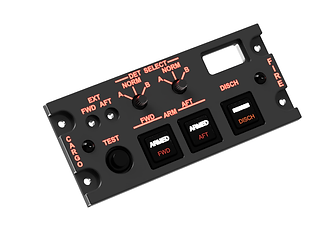

A 2023 Generation panel, updated and using all of Karl's skills and abilities to make this panel as straightforward as possible while looking professional. This panel can be 3d printed from the start to obtain a working sim with good results, albeit backlighting will suffer. Then, as the customer's funds grow, optional extras to increase the aesthetics can be purchased.
General Information:
Build Guide
Click on image for more details
STEP:
3
Install the SR16 rotary switches into the back panel
Click on image for more details
STEP:
4
Secure the switches with their supplied locknuts.
Click on image for more details
STEP:
5
Place the Mid panel onto the Back panel
Click on image for more details
STEP:
6
Insert the 12mm momentary push button
Click on image for more details
STEP:
7
Secure the panels and button with the nut provided.
Click on image for more details
STEP:
8
Place the Face panel on the assy
Click on image for more details
STEP:
9
Install QTY 2, M4 x 14mm Dome Head Screws.
Click on image for more details
STEP:
10
Secure the screws with QTY 2, M4 nuts.
Click on image for more details
STEP:
11
Install the QTY3 dual colour Korrys from the front of the panel
Click on image for more details
STEP:
12
Secure the Korrys with the backing cage
Click on image for more details
STEP:
13
Use QTY 2, M2 x 7mm screws to gently tighten the korry against the panel
Click on image for more details
STEP:
14
Install the 318 Korry into the front of the panel
Click on image for more details
STEP:
15
Place the 318 Korry cage of the top and secure it with am M3 nut. Be gentle and don't overtighten!
Click on image for more details
STEP:
16
Place the 5mm Green leds into the covers. They should be tight press fit.
Click on image for more details
STEP:
17
The lens covers should be a tight fit into the faceplate. If they are loose, a bit of glue may be required on the lens covers to secure them to the face panel.
Click on image for more details
STEP:
18
Install the 2 knobs
Click on image for more details
STEP:
19
Add the Dzus fasteners and secure the panel to its final location. I use M4, 14mm countersunk screws (hex head), but slotted head would be much better if you can find them.
