737SS AutoBrake Panel
This page is split into three main sections:
Parts Guide
Print Guide
Build Guide
The ultimate printer I can recommend is the Bambu Labs X1 carbon with AMS or P1P if you have deep pockets. ($1200). It's a massive leap forward in 3D printing, with excellent quality and impressive speeds. It's pretty much press print and go as the software and hardware do the calibration before each print.

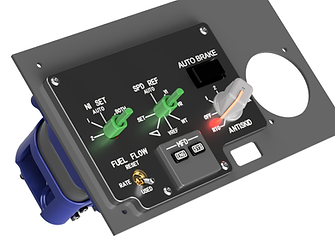

The 737SS Auto Brake Panel is a 3D printable model for true aviation enthusiasts. This panel features authentic slew switches with precise 30 and 60-degree detents, ensuring a realistic tactile feel every time you use it.
Key Features:
True-to-life slew switches: Experience genuine 30 and 60-degree detents for accurate control and feedback.
Complete replication: Faithfully reproduces all the features of the actual panel fitted in the aircraft, ensuring an immersive experience.
Lift-to-turn antiskid selection knob: Includes the unique lift-to-turn mechanism at RTO, mirroring the real-world functionality of the antiskid system.
Crafted with precision, this panel is perfect for those who demand functionality and authenticity in their flight simulation setups. Download, print, and assemble your 737SS Auto Brake Panel to bring the cockpit of a 737 right into your home.
This panel is your gateway to a more realistic and engaging flying experience, ideal for aviation hobbyists, flight simulators, and professional training environments.
General Information:
Build Guide
Click on image for more details
STEP:
1
Insert Qty 2, 6x6x7mm warm white LED tactile switches into the button cases.
Click on image for more details
STEP:
2
Press the lens into the button cases
Click on image for more details
STEP:
3
Insert the button assemblies into the upper two orifices. If you purchased the PCB from the webshop, please download the AB5A using the link below. This case has been modified to fit the PCB. The buttons must then be soldered to the PCB instead of attached to the case.
Click on image for more details
STEP:
4
Insert Qty3, 3mm flat top warm white leds into the light cavity. Ensure the anode and cathode legs all face one direction.
Click on image for more details
STEP:
5

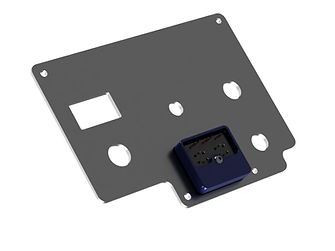

Insert the MFD Faceplate into the case
Click on image for more details
STEP:
6
Insert the MFD assebly into the facepanel
Click on image for more details
STEP:
6.2
If you have the SMD PCB for the MPD connect the wires as indicated to the arduino.
Click on image for more details
STEP:
8
Secure the parts with an M3 x 12mm screw. Do not over tighten. Be GENTLE!
Click on image for more details
STEP:
9

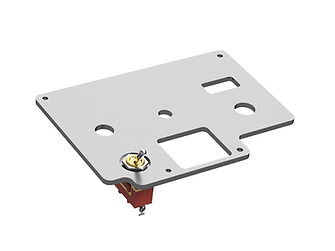

Insert a large 3 position toggle switch into the clear backplate. Tighten the unit in place.
Click on image for more details
STEP:
10
Place the mid panel over the switch
Click on image for more details
STEP:
11
Place all 3 panels together and insert ???Korry???
Click on image for more details
STEP:
12
Place the Korry cage over the rear of the unit
Click on image for more details
STEP:
13
Secure the parts with an M3 nut. Be gentle! The nut only needs to press against the cage. I would only advise finger tigthness.
Click on image for more details
STEP:
14
Place 12V LED strips into the back box.
Click on image for more details
STEP:
15
Create the Anti skid switch here:
https://www.737diysim.com/build-guides-1/737ss-antiskid-switch
Place the unit into the light base from the rear
Click on image for more details
STEP:
16
Secure the antiskid switch with QTY 3, M4 x 10mm screws.
Click on image for more details
STEP:
17
Create the combined rotary and slew switch here:
https://www.737diysim.com/build-guides-1/737ss-combined-rotary-and-slew-switch-assy
Then place it into the light box from the rear.
Click on image for more details
STEP:
18
Secure the parts with QTY 3, M4 x 10mm screws.
Click on image for more details
STEP:
19
Insert the lightbox assebly into the back of the upper MIP panel
Click on image for more details
STEP:
20
Place the faceplate assembly onto the front of the MIP upper faceplate.
Click on image for more details
STEP:
21
Secure with QTY 4, M4 x 25mm screws
Click on image for more details
STEP:
22
Place the General knob onto the antiksid switch and secure in place
Click on image for more details
STEP:
23
Place the combined rotary and slew knobs onto the shafts and secure.
