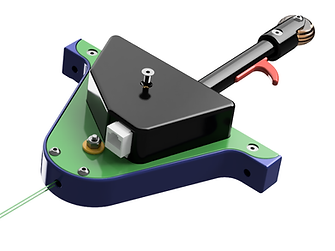

737SS LG Panel
This page is split into three main sections:
Parts Guide
Print Guide
Build Guide
The ultimate printer I can recommend is the Bambu Labs X1 carbon with AMS or P1P if you have deep pockets. ($1200). It's a massive leap forward in 3D printing, with excellent quality and impressive speeds. It's pretty much press print and go as the software and hardware do the calibration before each print.
General Information:
Build Guide
Click on image for more details
STEP:
If you have the LED lighting plate, it requires 12v for connection. The square is the GND on header P1.
Click on image for more details
STEP:
1
Insert LG5 into LG4
Click on image for more details
STEP:
2
Secure the parts with QTY 2, M3 x 8mm countersunk screws.
Click on image for more details
STEP:
3
Add the spring to the Rod LG4. On the other end of the spring, loop some string or cord around the other hook.
Click on image for more details
STEP:
4
Place the Trigger assy into the Main tube LG3
Click on image for more details
STEP:
5
Insert an M4 x 35mm dome head screw into the LG6 RHS Ferrule and trigger rod.
Click on image for more details
STEP:
6
Turn the assembly over, and place the LG7 LHS Ferrule onto the screw shaft.
Click on image for more details
STEP:
7
Secure the parts with an M4 locknut
Click on image for more details
STEP:
8
Install QTY 6, M4 tapered thread inserts.
Click on image for more details
STEP:
9
Install QTY 2. Tapered thread inserts into LG13
Click on image for more details
STEP:
10
Install QTY 2. Tapered thread inserts into LG14
Click on image for more details
STEP:
11
Install Qty 4, M2 tapered thread inserts into LG2.
Click on image for more details
STEP:
12
Place the LG13 Noggin onto the main body.
Click on image for more details
STEP:
13
Secure the noggin with an M4 x 8mm countersunk screw.
Click on image for more details
STEP:
14
Place the LG14 noggin onto the cover plate LG2
Click on image for more details
STEP:
15
Secure the Nogginw with an M4 x 8mm countersunk screw.
Click on image for more details
STEP:
16
Place the main tube assy into the main cover.
Click on image for more details
STEP:
17
Use the string to pull the spring to allow the fitment of the pivot screw.
Click on image for more details
STEP:
18
Insert an M4 x 35mm dome head screw through the pivot ferrule LG8
Click on image for more details
STEP:
19
This step is an error
Click on image for more details
STEP:
20
This step is an error
Click on image for more details
STEP:
21
Place the LG2 cover over the assy
Click on image for more details
STEP:
22
Place another LG8 Pivot Ferrule over the screw shaft. Secure the whole assy with an M4 locknut. The flanges may not touch the sides, depending on the size of the spring used.
Click on image for more details
STEP:
23
Secure the cover plate LG2 with QTY 2, m4 x 8mm countersunk screws, and QTY 2, M4 x 8mm dome head screws.
Click on image for more details
STEP:
24
Install the outer fitting LG9
Click on image for more details
STEP:
25
Secure the parts with an M4 x 20mm countersunk screw.
Click on image for more details
STEP:
25.1
Install the wheel LG10. Secure it with an M4 x 20 Domehead screw.
Click on image for more details
STEP:
26
Place the RJ45 socket into the RHS cover LG12
Click on image for more details
STEP:
27
Secure the cover with an M4 x 8mm countersunk screw.
Click on image for more details
STEP:
28
Install the RHS cover LG11. Secure it with an M4 x 8mm countersunk screw.
