Heli Apache APU Switch
This page is split into three main sections:
Parts Guide
Print Guide
Build Guide
The ultimate printer I can recommend is the Bambu Labs X1 carbon with AMS or P1P if you have deep pockets. ($1200). It's a massive leap forward in 3D printing, with excellent quality and impressive speeds. It's pretty much press print and go as the software and hardware do the calibration before each print.
This Korry is made for the AH64 throttle panel and includes an NVG flip cover and two tactile LED switches. The LEDs provide lighting for the dual-line Korry indicator, with the top line showing "APU" and the bottom one stating "ON." Both LEDs are green. The Korry lens is made from 2mm clear acrylic, which can be challenging to see when unlit. The button allows for APU operation within DCS. If you are a DCS user, please use the auto flap open and close the code line when operating the button.
General Information:
Build Guide
Click on image for more details
STEP:
1
Insert the decal plate (K3) into the Centre Case (K1)
Click on image for more details
STEP:
2

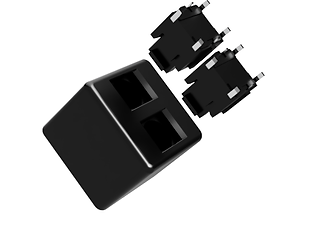

Insert Qty 2, Tactile LED's into the centre hosuing. Keep the cathode legs facing towards each other in the centre.
Click on image for more details
STEP:
3
Insert the lens assembly into the outer case K2
Click on image for more details
STEP:
4

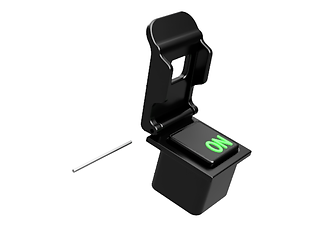

Place the Flap Lid ontop the base and secure using a 1mm x 22mm rod.
