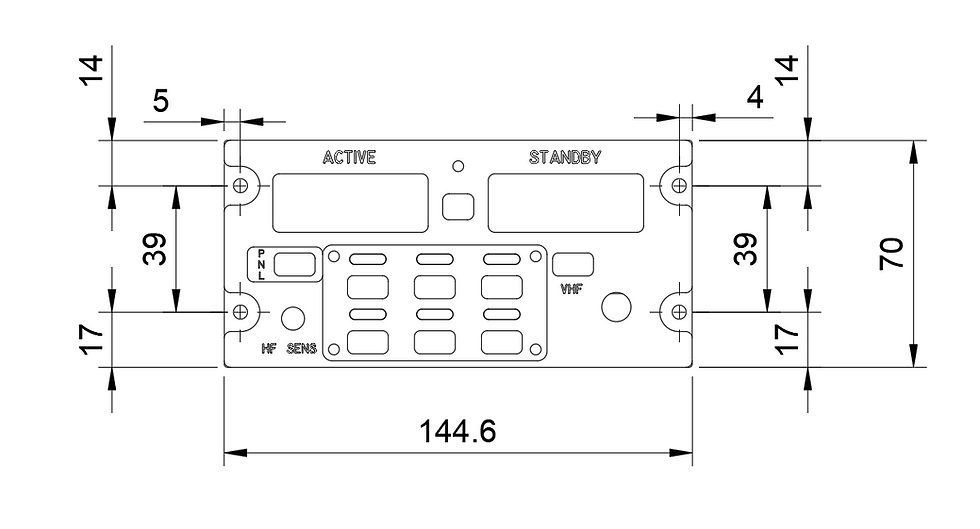

✈️ 737 Multi Radio Panel - DIY Kit

The 737 Multi Radio Panel is the result of nine years of dedicated CAD and PCB development, making it one of the most refined and reliable radio panels available for simulator builders. Designed by Karl, who considers this one of his finest creations, this panel combines authenticity, ease of assembly, and versatility for builders of all skill levels.
Inspired by the Gables Radio Tuning Panel, this DIY kit includes pre-painted components and requires only minimal through-hole soldering. It supports presets for VHF1, VHF2, VHF3, HF1, HF2, and AM, offering a comprehensive radio solution for your flight deck.

🔧 Available Options to Suit Your Build & Budget

Complete Set
Everything you need to build your own radio panel, from faceplate to PCB. Just add your Arduino or Breakout Board (BOB).
Panel Set
Includes the face, mid, and back panels, laser-engraved buttons, lenses, and screen frames.
PCB Only
Ideal for custom builds. Choose your own 7-segment displays and supply your own electronics.
PCB + Electrical Components
All components required to populate the PCB with white 7 segment displays. Arduino not included.
Resin Parts
Includes knobs, Dzus fasteners, and spacers for a realistic finish.

🧰 Additional Details

Dzus Fasteners: Four replica fasteners included (without screws). Recommended: M4 x 14mm countersunk black screws.
LED Compatibility: Requires standard cathode connection. LEDs must be wired to Arduino digital/analogue pins, as they are not compatible with BOB shift register outputs.
Software Compatibility: Not yet verified with PMDG737 or X-Plane.

Whether you're building a full-scale simulator or upgrading your existing setup, the 737 Multi Radio Panel offers unmatched quality and flexibility. Designed with the DIY community in mind, it’s ready to assemble, customise, and integrate into your cockpit.
