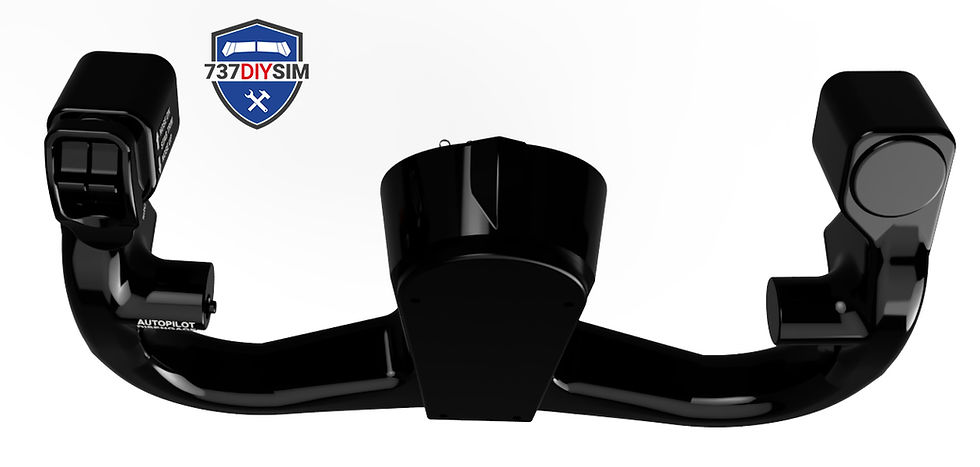

737 Yoke Design
This project has demanded months of development, testing, and iterations to ensure the highest quality and realism. This Yoke is designed to fit seamlessly onto the 3D-printed control head. For those requiring an exact replica, please note that although this design file was created at the start of Karl's journey into CAD, the shape and size are slightly off from an original 737 Yoke by a few millimetres in places. For those needing customization, the Fusion CAD file is included to suit your unique requirements.
Key Features:
Gorgeous compound Curvatures: Designed to feel smooth and ergonomic in the hand and as close as possible to actual dimensions and curvatures.

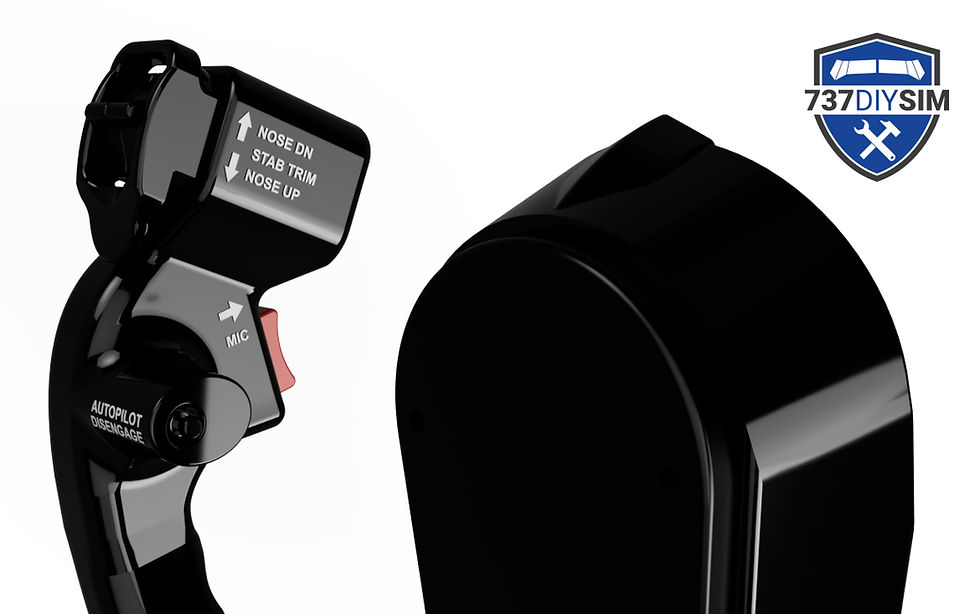

Functional Trim Switches: Enjoy the immersive experience with fully operational trim switches.
Autopilot Disengage Switch: Disengage autopilot with ease using the functional switch.
Operational Rocker MIC Switch: Communicate effortlessly with a fully functional MIC switch.
Raised Text: Provides easy highlighting and improved usability.
Accessible Design: Simplified access for all components for easy assembly and maintenance.
Included in the Zip File:
Fusion 360 CAD file
3D Print Files
For a comprehensive guide on building and assembling, refer to the Build and Parts Guide available here.
